LV Switchgear, also known as UL 1558 Low Voltage Switchgear, is a key low-voltage power distribution product used for receiving, distributing, controlling, and protecting electrical energy in low-voltage systems. It is commonly installed on the low-voltage side of transformers and serves as the primary distribution equipment for downstream switchboards, panelboards, motor control systems, lighting panels, power equipment, HVAC systems, pumps, and other electrical loads.
| Standard Reference | UL 1558, ANSI C37.20.1 |
|---|---|
| Circuit Breaker Type | UL1066 Air Circuit Breaker, ACB |
| Breaker Installation | Withdrawable type available |
| التيار المقنن | Project-based configuration; high-current busbar options available |
| Short-Circuit / Bus Withstand | Up to 100kA available according to project design |
| التثبيت | Indoor electrical room, power distribution center, substation, industrial facility |
تكوين نموذجي فقط. يتم تأكيد القيم النهائية وفقًا لمتطلبات المشروع.
LV Switchgear / UL 1558 Low Voltage Switchgear is widely used in low-voltage power distribution systems that require high reliability, high current capacity, and safe operation. It is typically installed after a transformer and acts as the main low-voltage distribution center for electrical loads.
1. Applicable Scope and Purpose of Circuit Breaker The NDM2-630 molded case circuit breaker (hereinafter referred to as circuit breaker) applies to infrequent switching of circuits with the AC 50/60Hz, the working voltage of AC690V and working c...
عرض التفاصيل
1. Applicable Scope and Purpose of Circuit Breaker The NDM2E-400 series of electronic molded case circuit breakers (hereinafter referred to as circuit breakers) apply to infrequent switching of circuits with the AC 50Hz, the working voltage of A...
عرض التفاصيل

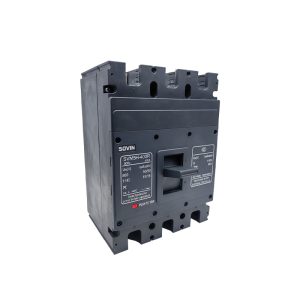

General SVM5H series of moulded case circuit breaker is supplied with rated insulating voltage 1150V and used for circuit of A.C. 50Hz, rated operating voltage AC 1140V. (or below), rated operating current up to 630A for infrequent changing over a...
عرض التفاصيل
Applications: The NDG3V-250~800 series switch-disconnectors are applicable to electric systems with a rated voltage up to DC 1500V and a rated current up to 800A. It can be used for infrequent close and open, it provides isolation and breaking ...
عرض التفاصيل
